A dual purpose welding machine offering high dynamic precision for projection welds.
Main Features
- High performance pressure guide - The newly developed pressure guide contains a follow-up spring for a wide improvement in instantaneous response during welding
- Improved pressure cylinder - Improvements to the air circuit have achieved faster speeds for the pressure cylinder. Individual adjustment of lifting and lowering speeds is possible even on standard models.
- Single-touch switching of electrode stroke - A simple single-touch system is used for electrode stroke switching.
- Easy-to-read pressure gauge - The pressure gauge faces frontward for easy visibility, facilitating pre-operation inspections.
- Economical low-energy design - The low energy design greatly reduces the burden on the power supply.
- Bottom exhaust for a cleaner working environment - Air is discharged at the lower part of the unit, thereby reduced oil mist and helping to keep the working environment clean.
- Clean, high visibility transparent hoses - A cooling water circuit has been adopted circulation system, and transparent hoses are used for easy confirmation of cooling water flow.
- State-of-the-Art microcomputer timer - To meet diversifying welding needs, a key-operated microcomputer constant current multifunction timer (with monitor) is optionally available.
- Equipped with weld interlock - A weld interlock circuit is a standard equipment to facilitate initial power receiving.
- Equipped with upslope circuit - An upslope control circuit is standard equipment to achieve stable welding with no flash.
- Equipped with hold over output signal function - A hold over output signal function is standard equipment to facilitate sequence to and from adjacent processes.

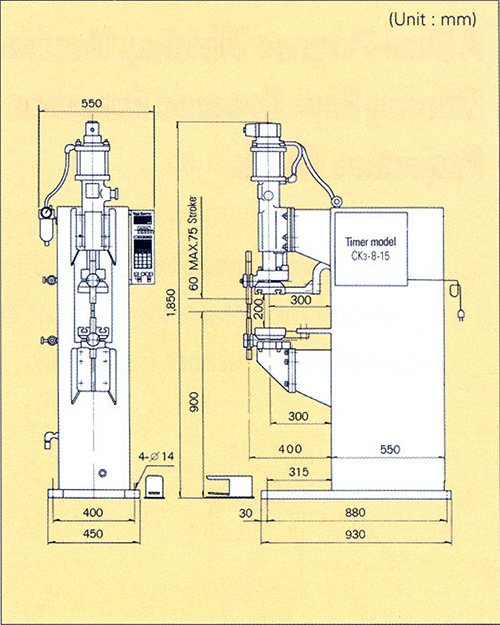

Main Unit Dimensions

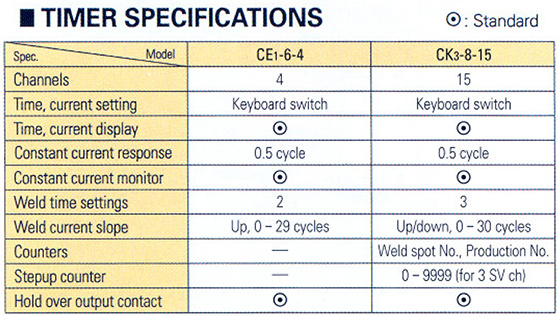

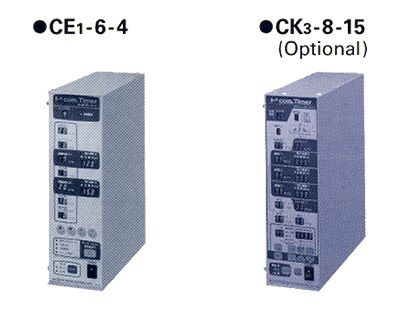

Timer

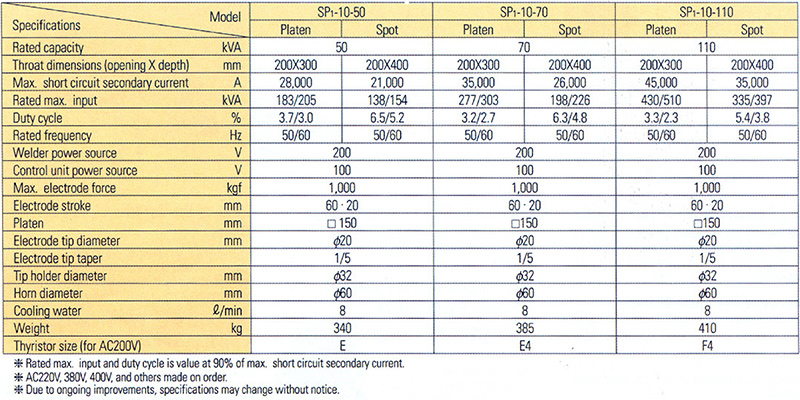

Main Unit Specifications
