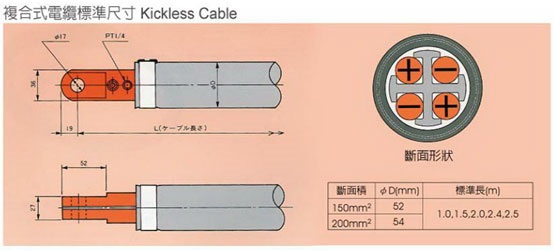

Kickless Cable:
- Unique "X-Shape Separator maintains strand positioning and equally distributed cooling water flow.
- State of the art 4 wire design to minimize current loss, reduced Co2 emission.
- Electricity tough pitch annealed, bare copper wire, 28AWG,herringbone rape construction for greater flexibility and reduced wear point.
- High temperature internal restraining collars to minimize stress in the bending area.
- Lowest reactance of the class to engage lower primary power demand.
- No noticeable pulsation due to low magnetic kicking.
- Improved Flexibility, smaller bend radii comparing to previous model.
- Reduced operator fatigue, higher productivity.
- All Customized Length is available upon request.
PRODUCT SPECIFICATIONS
|
Item |
Specification |
||||||||
|
300MCM |
400MCM |
500MCM |
|||||||
|
2.0m |
2.4m |
3.0m |
2.0m |
2.4m |
3.0m |
2.0m |
2.4m |
3.0m |
|
|
Reactance(µΩ) |
68 |
81 |
90 |
45 |
57 |
71 |
33 |
44 |
57 |
|
Resistance(µΩ) |
460 |
550 |
680 |
330 |
400 |
495 |
265 |
320 |
400 |
|
Impedance(µΩ) |
465±10 |
556±10 |
686±10 |
333±15 |
404±15 |
500±15 |
267±20 |
323±20 |
404±20 |
|
Power Factor |
0.99 |
||||||||
|
Breakdown Pressure |
8 kg/cm2 |
||||||||
|
Min. Cooling Water Require Rate |
6 Liter/min |
||||||||
|
Outer Diameter (mm) |
52mm |
56mm |
63mm
|
||||||
